DIN 1897 |
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| |||||||||||||||||||||||||||

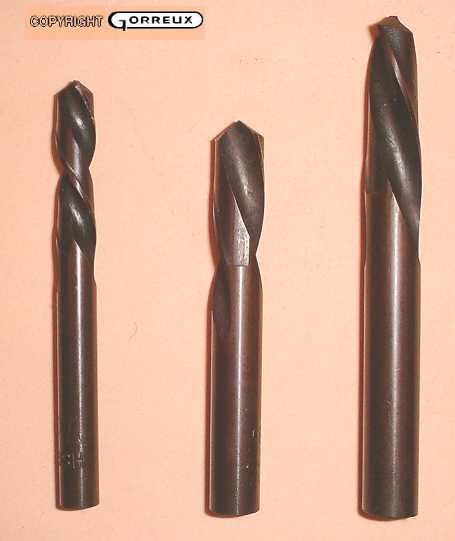

BOREN TYPE HSS, GEWALST | |||||||||||||||||||||||||||
FORETS TYPE HSS LAMINES | |||||||||||||||||||||||||||
![]() | |||||||||||||||||||||||||||
CODE 3382 | |||||||||||||||||||||||||||
![]() | |||||||||||||||||||||||||||

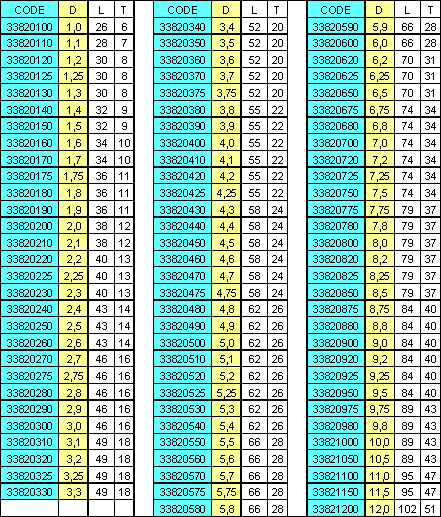

Exemple de code - voorbeeld code : 5,2 = 33820520 Exemple de commande - voorbeeld bestelling : DIN 1897 - 5,2 TM | |||||||||||||||||||||||||||
D = diamètre nominal - diameter L = longueur totale - totale lengte T = longueur partie coupante - lengte snede Affûtage = 118° - 135° | |||||||||||||||||||||||||||
Géométrie : hélice normale, 30° | |||||||||||||||||||||||||||
Punthoek : kegelmantel 118° - 135° | |||||||||||||||||||||||||||
Spaangroef : normale spiraalhoek, 30° | |||||||||||||||||||||||||||
Utilisation : perçage à main ou sur tour automatique - coupe à droite | |||||||||||||||||||||||||||
Gebruik: manuele boring of op automatische draaibank - snede rechts | |||||||||||||||||||||||||||
| |||||||||||||||||||||||||||
